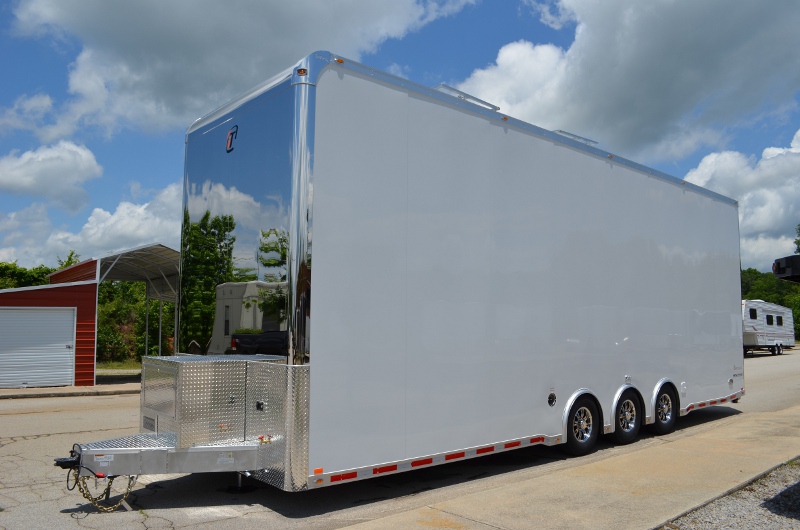

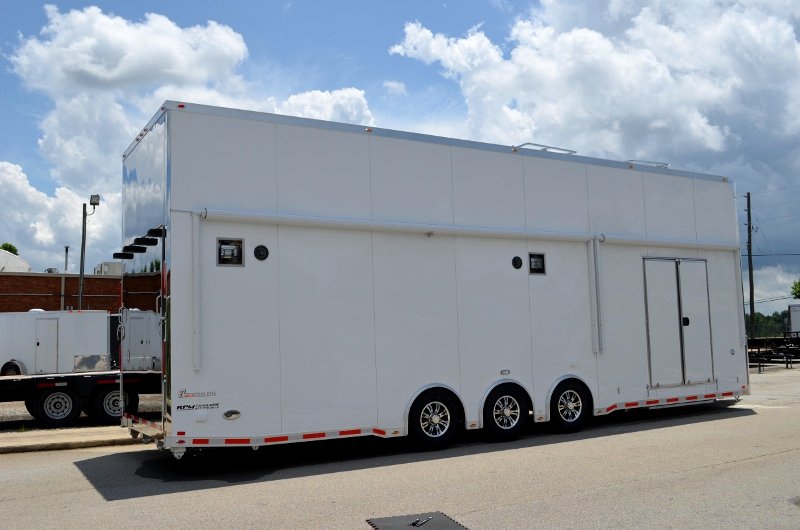

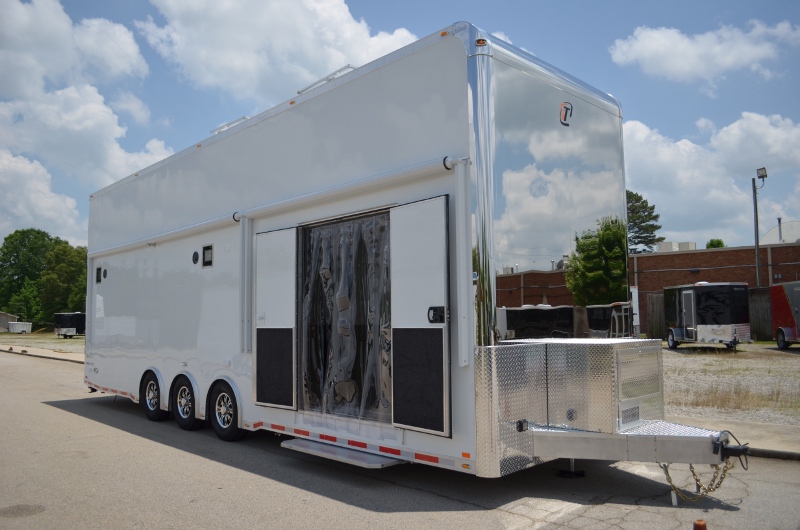

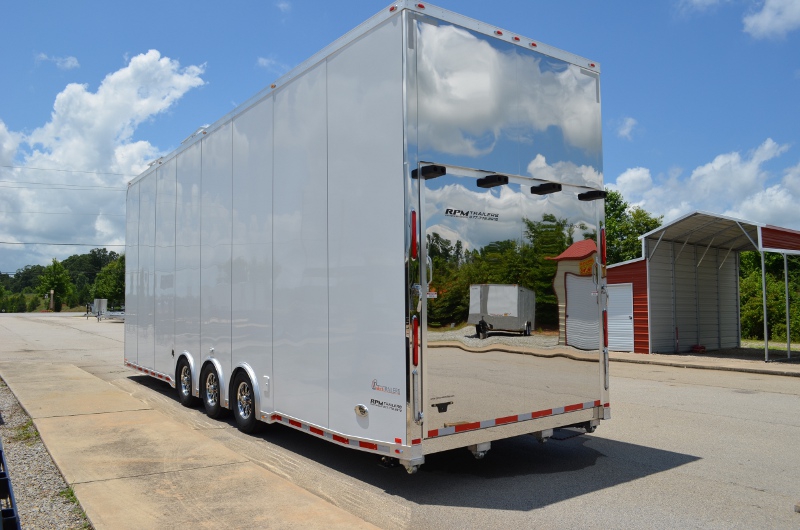

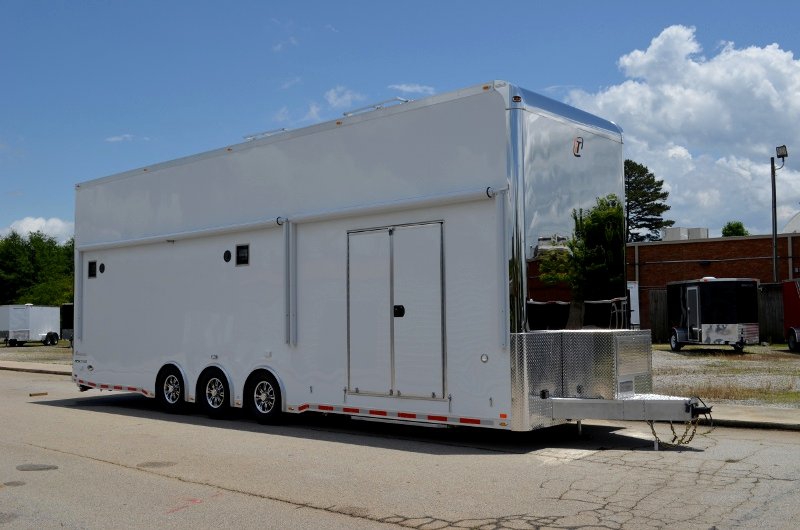

32' Custom Aluminum inTech Stacker Trailer
This is where performance meets the road!! Transport multiple cars, motorcycles and toys aplenty with stacker trailers from RPM Truck and Trailer Sales. Fully equipped and built to last on the open road and beyond. Brad Sellers, our custom Stacker specialist designs each of our customers stacker trailer with their needs in mind. Call RPM Truck and Trailer Sales for your next custom stacker trailer 706-654-2882. RPM Truck and Trailer Sales is determined to design the best aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer is the country! Browse the images of this all aluminum stacker race trailer and let us know what you think!
GVWR: 23,100 lbs.
Shipping Weight: 10,470 lbs.
Height: 11' 4" Interior
Axle Type: Triple 7,000# Torsion Axles
Model: BSA8532TTA5 Product Number: 11907
GVWR: 23,100 lbs.
Shipping Weight: 10,470 lbs.
Height: 11' 4" Interior
Axle Type: Triple 7,000# Torsion Axles
Model: BSA8532TTA5 Product Number: 11907
Chassis:
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Triple Tube A-Frame
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Hydraulic Front Jack
Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Roof Studs

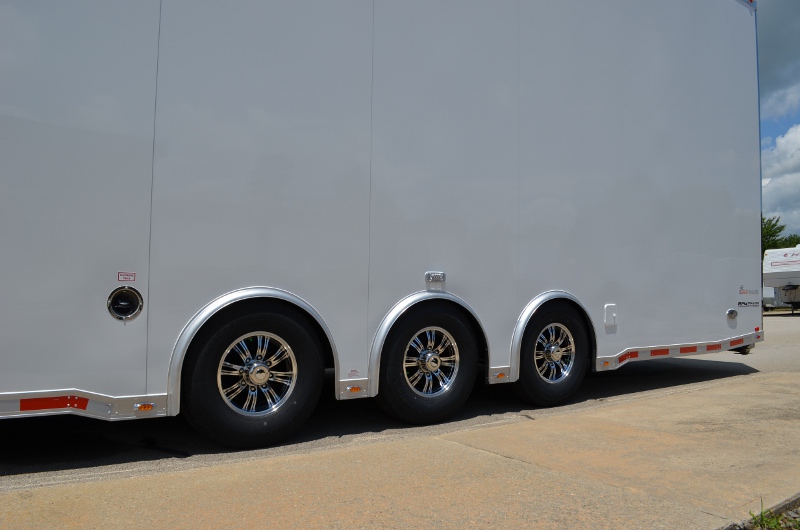

Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels

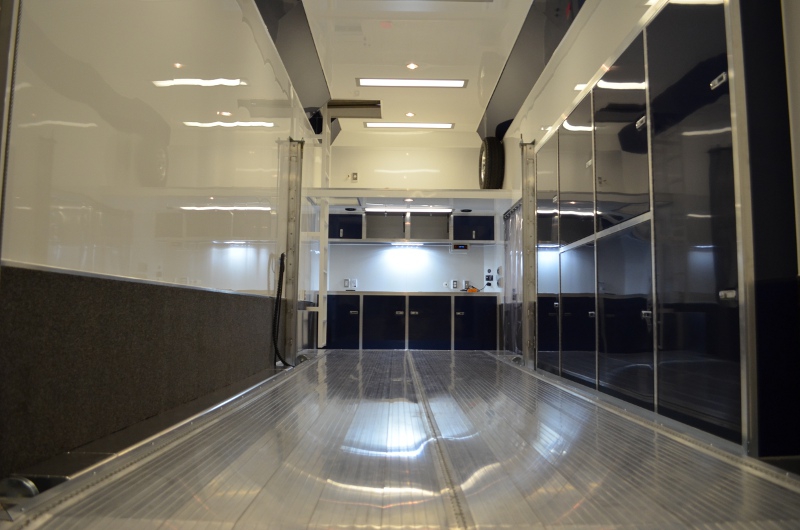

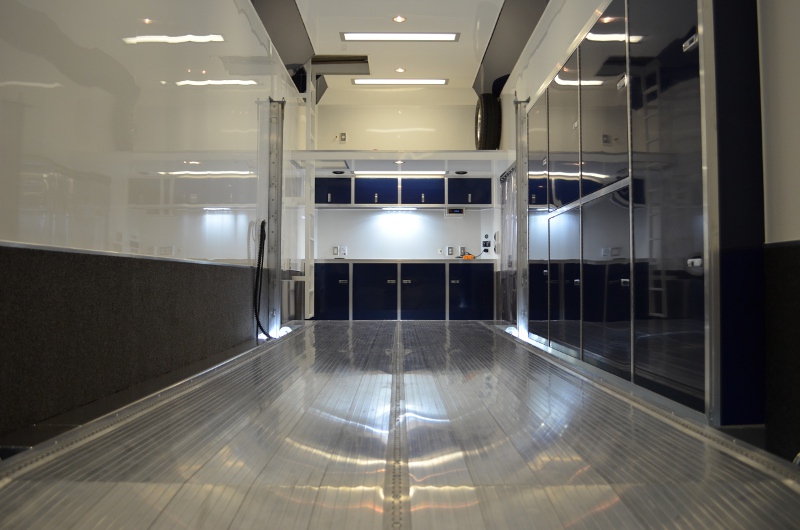

Interior
One Piece Aluminum Subfloor Vapor Barrier
Extruded Aluminum Floor
Extruded Aluminum Ramp
6) Dome Lights
10’ Standard Interior Height
3’ Interior Beavertail
.030 Screwless Aluminum Walls and Ceiling
8) 5,000 lb. D-Rings
Exterior
.040 Aluminum Skin
One Piece Aluminum Roof
4” Upper and Lower Rub Rail
Dual LED Slimline Tail Lights
36’ ATP Stoneguard
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Verticals & Radius
Polished Cast Aluminum Corners

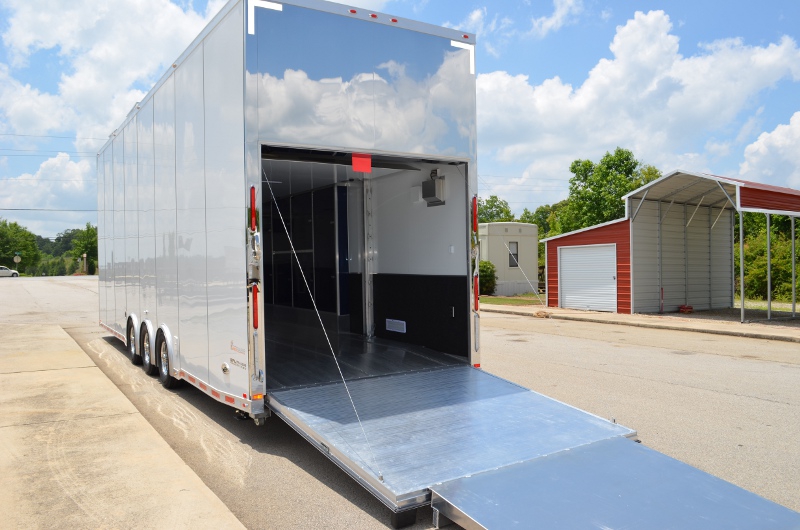

Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Screwless Exterior
Arched & Trussed Walk - On Roof System
LED Clearance Lights
LED Slimline Backup Lights
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Triple Tube A-Frame
Electric Brakes- All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2) 5/16” Ball Coupler
Hydraulic Front Jack
Safety Chains w/ Storage Loop
16” O/C Floor Crossmembers
16” O/C Roof Studs
Spread Axles Design w/ individual Fenderettes
ST 235 85 R 16 Nitro Filled Tires w/ Steel Wheels
Interior
One Piece Aluminum Subfloor Vapor Barrier
Extruded Aluminum Floor
Extruded Aluminum Ramp
6) Dome Lights
10’ Standard Interior Height
3’ Interior Beavertail
.030 Screwless Aluminum Walls and Ceiling
8) 5,000 lb. D-Rings
Exterior
.040 Aluminum Skin
One Piece Aluminum Roof
4” Upper and Lower Rub Rail
Dual LED Slimline Tail Lights
36’ ATP Stoneguard
36’ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Stainless Steel #8 High Polish Verticals & Radius
Polished Cast Aluminum Corners
Rear Ramp Door w/ Gapless Continuous Hinge
Stainless Steel Rear Paddle Latches
Rear Skid Plates
Screwless Exterior
Arched & Trussed Walk - On Roof System
LED Clearance Lights
LED Slimline Backup Lights
Stacker Features
14’ Aluminum Split Rail Lift (4000# Capacity)
In Floor Hydraulic Lift Pump
2) 12V Deep Cycle Batteries w/ Vented Boxes
15A Motorbase Plug
Rear Manual Stabilizer Jacks
Underside of Lift Finished w/ .030 Aluminum
In Floor Battery Compartment
45amp Converter Battery Charger
Tongue Weight Sacle
Selected Options:
Upgraded to 11' 4" Interior Height
3) 48” Florescent Light Integrated into Bottom of Lift
Integrate Rear Ramps into Stacker Lift
Upgraded to Full Floor Aluminum Lift
Upgrade to .050 Exterior Aluminum
Stainless Steel Rear Header - #8 High Polish
12” Extended Tongue

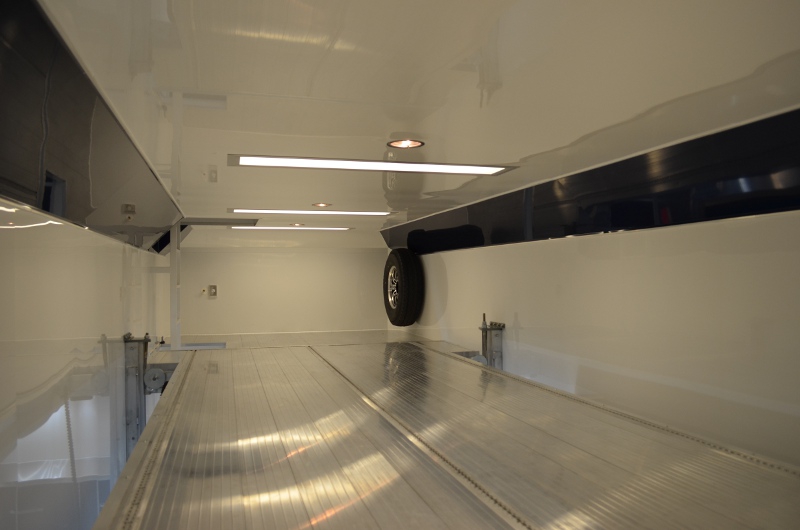

Light Duty Attic w/ Matching Flooring
Upgraded to Heavy Duty on Roof

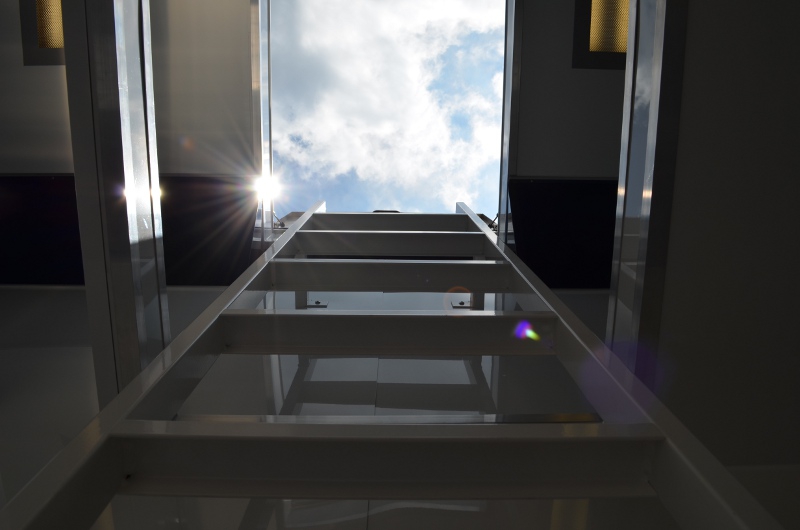

Roof Escape Hatch w/ Interior Ladder

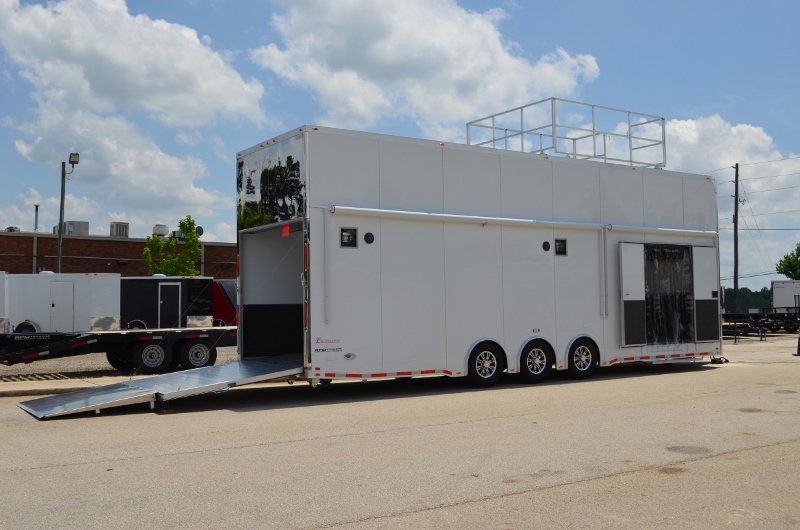

Roof Mounted Viewing Rail

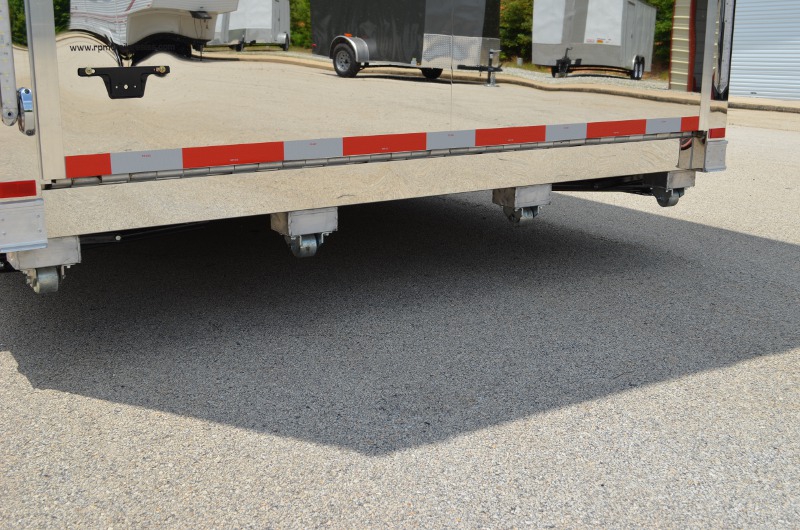

Rear Caster Wheels –Pair
Weight Distribution Prep
Spare ST235/85R16 on Aluminum Wheel
Spare Tire Wall Mount
Upgrade to 60” 405 Series Double Door
Add Slideout Aluminum Step
Cold Curtain for Entrance Door
Add 5’ Aluminum Ramp Extension -72” Wide
7.0KW Onan Generator Package (120V/240V) - Gasoline
12V Marine Grade Battery in Vented Box
36”x 36” 405 Series Vented Gen Door
Insulated Generator Compartment
Add 50 Amp Electrical Service Package
12V Fuse Panel
60 Amp 12V Converter Battery Charger
7) 120V 15A Recept – GFI Protected
4) 12V 18” LED Interior Light
6) 120V 48” Florescent Light EVENLY SPACED
Upgrade to 3 WAY Light Switches (Pair)
10) LED Clearance Lights
Add LED Slimline Backup Lights (Pair)
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add12V LED Docking Lights(Pair)
2) 120V 500W Quartz Halogen Light
Carpet on Interior Walls- 34” High

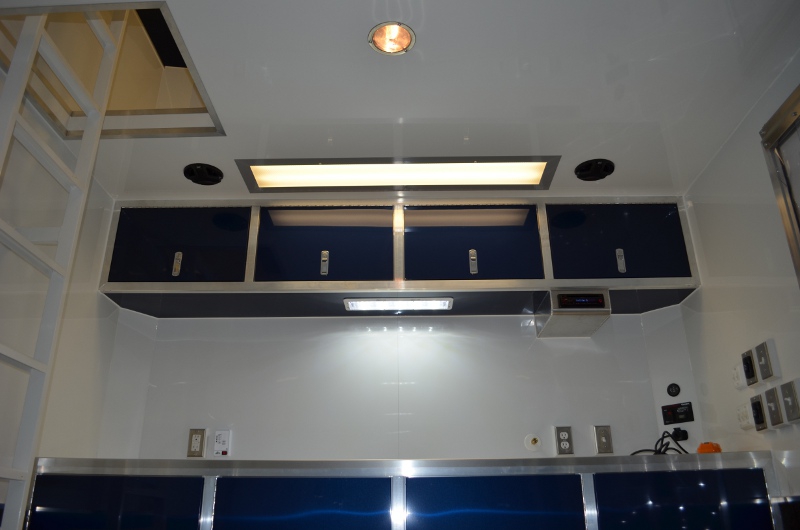

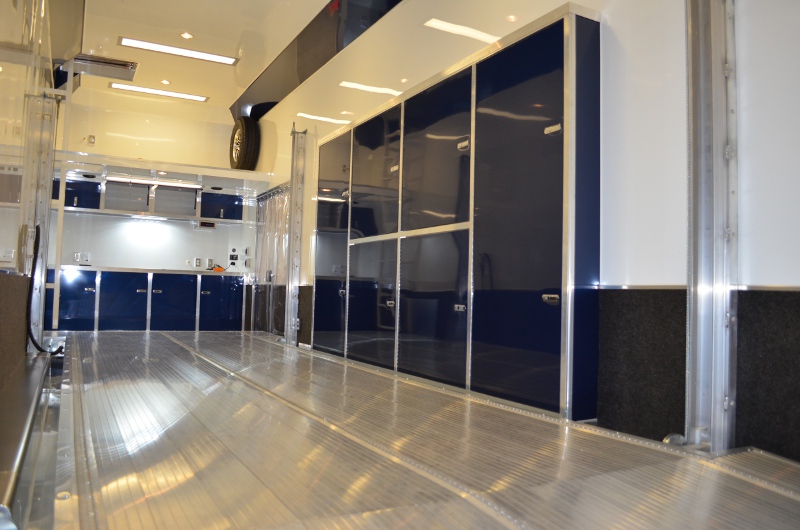

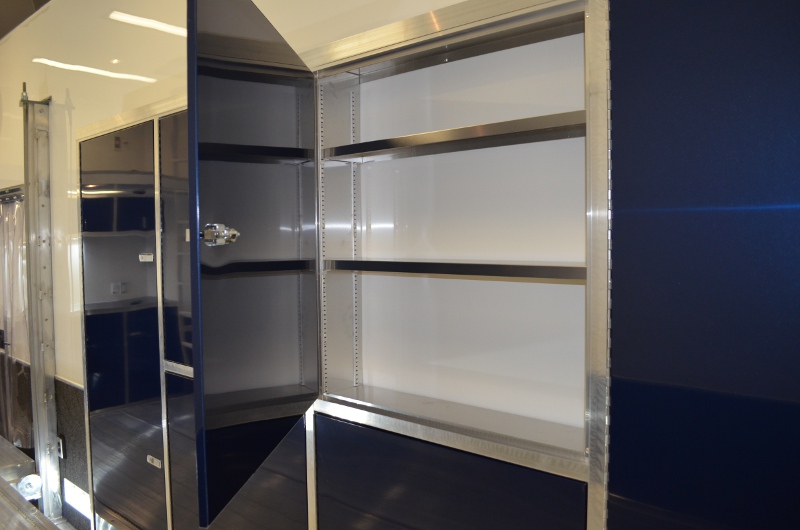

8’ Premium Lower Aluminum Cabinet
8’ Premium Upper Aluminum Cabinet

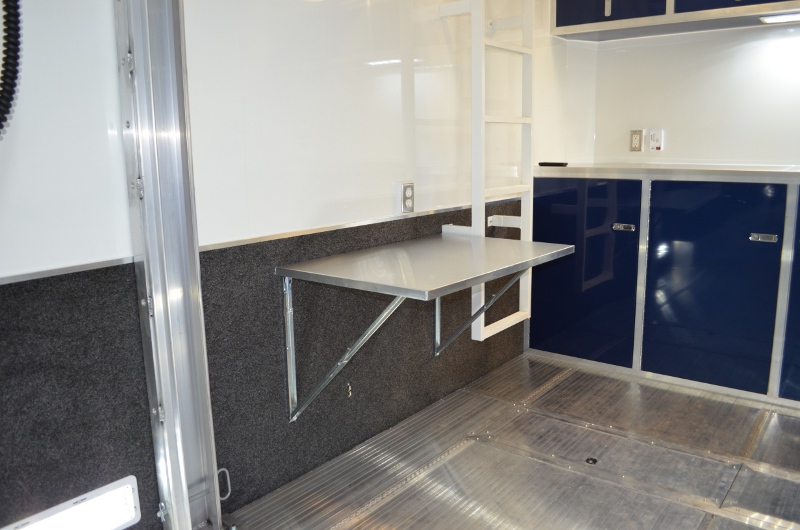

Aluminum Countertop-24” Fold Down
Wheel Well Cabinet Triple Axel with Adjustable Shelves
153' Recessed Airline Track
ATP Tongue Cover
Lowered Skirt w/ Reverse Beavertail Design
Mirror Finish Stainless Steel Rear Ramp Door

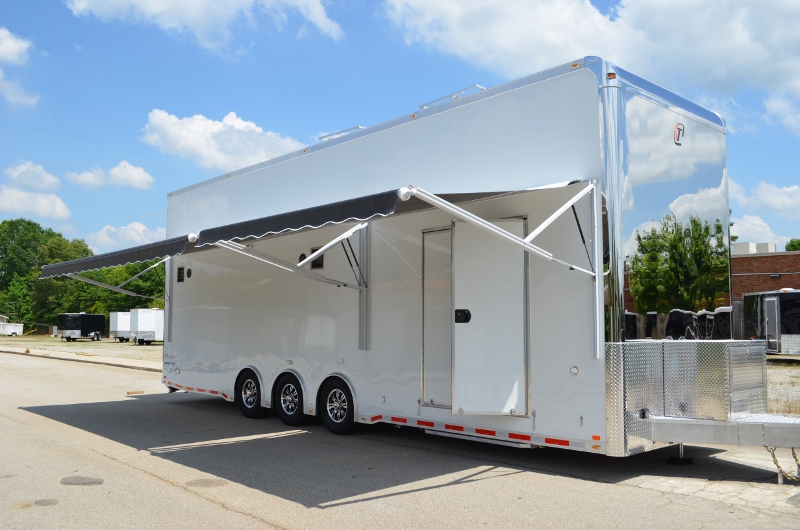

11' Dometic 12v Power Awning
19' Dometic 12v Power Awning

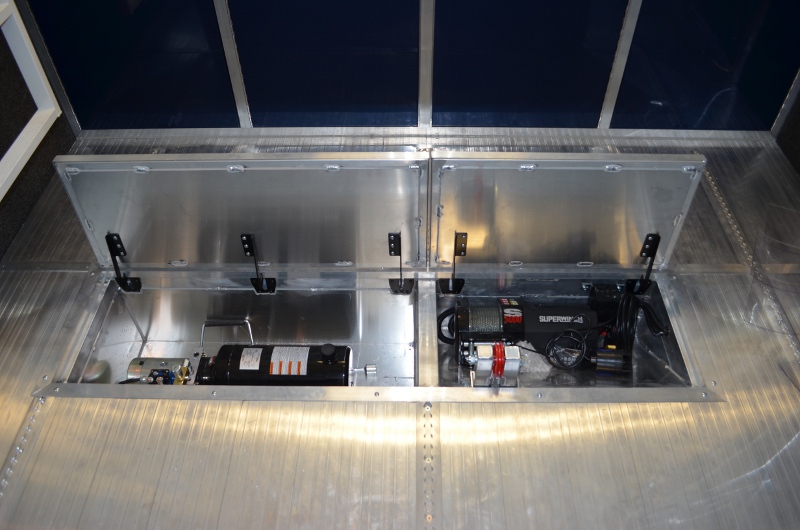

In Floor Winch Box w/ Pulley
5,000 lb Winch w/ 2 Wireless Remotes
Airline Prep Package
AM/FM/CD Stereo w/ 2 Interior Speakers & 2 Exterior
Fresh Water Spigot
Upgrade to Solid Stainless Steel Front

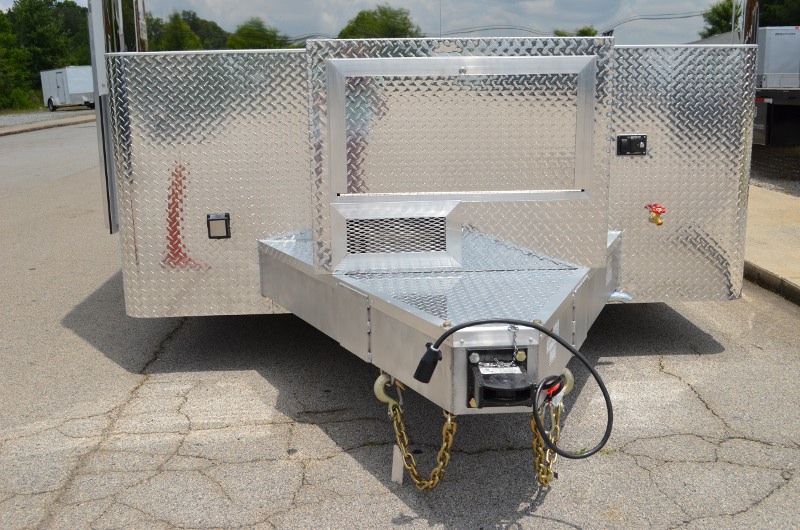

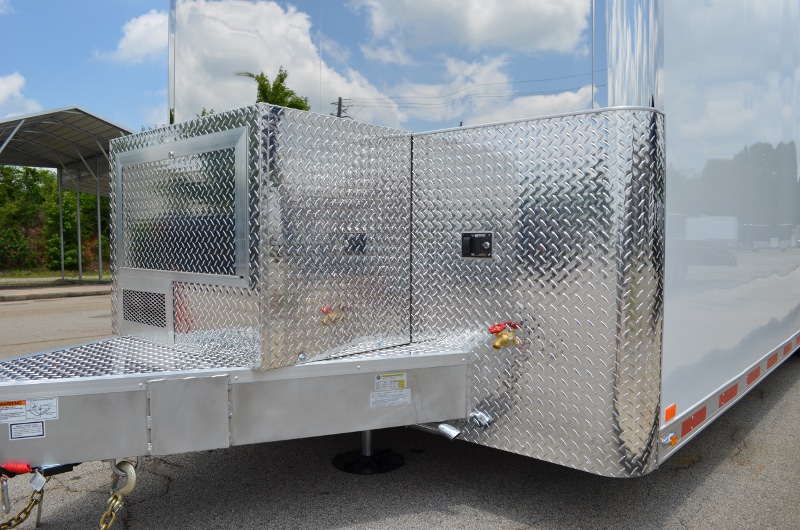

Tongue Mounted Generator Box
Custom Lift 19.41" Excluding Ramp
