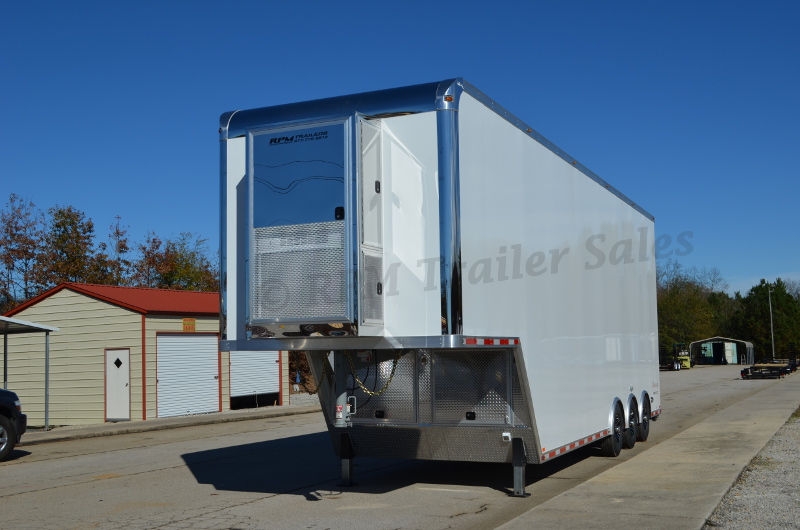

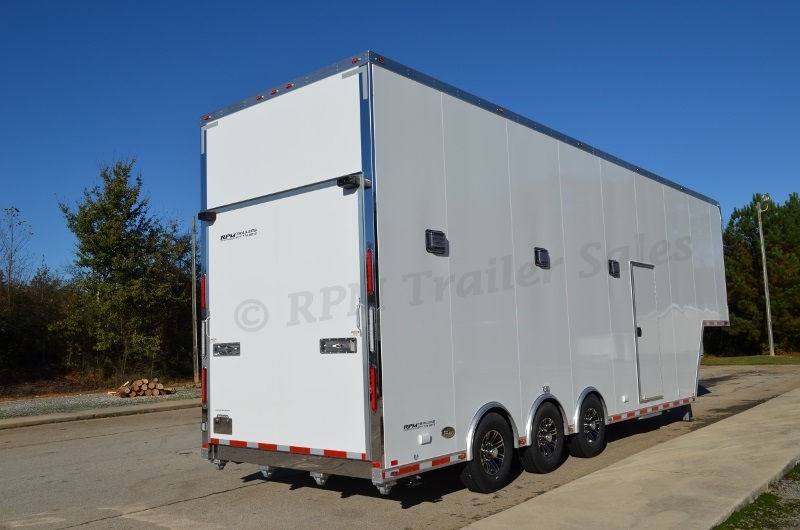

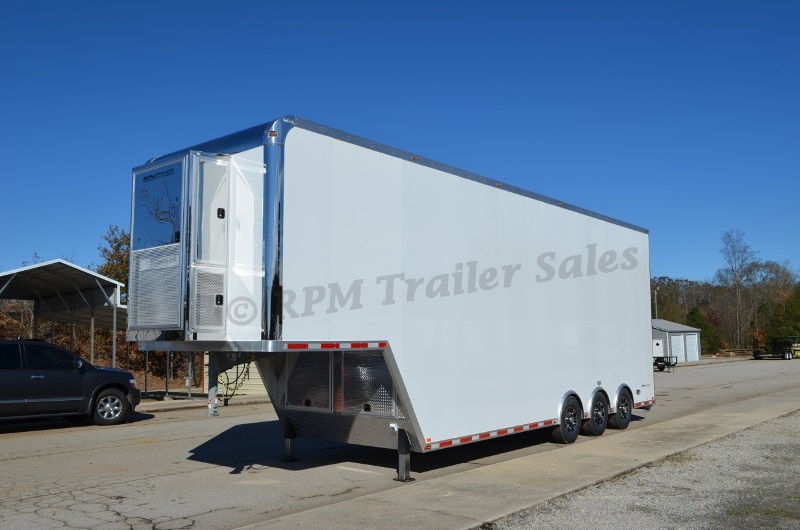

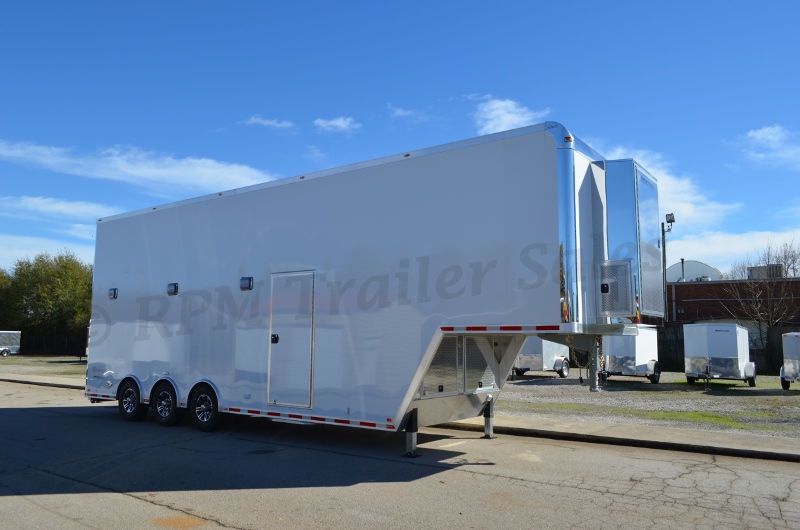

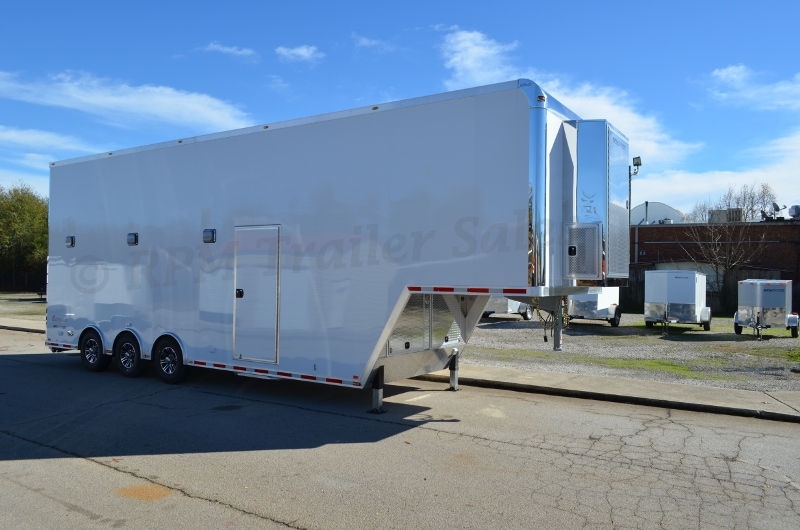

34' Custom inTech Aluminum Gooseneck Stacker Trailer
Pure perfection in every detail…. Arrive in style with a 34’ custom all-aluminum stacker trailer built by RPM Trailer Sales. Specializing in custom trailer designs to fit your specific needs. The extensive offering of an excellent custom product at an affordable price has always been our number one goal. The structure of every trailer is unique and of the highest value that money can buy. Everyone’s taste is different and expected to be diverse, therefore we provide detailed quotes and options that will work specifically for you.
Take a look at this beautiful 34’ Stacker Trailer and its many custom options. This is personalization at its finest. This 34’ custom aluminum stacker trailer features a bard AC, custom cabinet package, heavy duty attic, in floor winch and so much more. Contact RPM Trailer Sales for your next custom gooseneck stacker trailer at 706-654-2882. RPM Trailer Sales is designing only the finest stacker trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest inTech aluminum trailer dealer in the country! “Often Imitated – Never Duplicated”
GVWR: 24,990 lbs.
Shipping Weight: 10,090 lbs.
Interior Height: 11.33’
Axle Type: Triple 7,000 lb. Dexter Torsion Axles
Take a look at this beautiful 34’ Stacker Trailer and its many custom options. This is personalization at its finest. This 34’ custom aluminum stacker trailer features a bard AC, custom cabinet package, heavy duty attic, in floor winch and so much more. Contact RPM Trailer Sales for your next custom gooseneck stacker trailer at 706-654-2882. RPM Trailer Sales is designing only the finest stacker trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest inTech aluminum trailer dealer in the country! “Often Imitated – Never Duplicated”
GVWR: 24,990 lbs.
Shipping Weight: 10,090 lbs.
Interior Height: 11.33’
Axle Type: Triple 7,000 lb. Dexter Torsion Axles
Model: BGA8534TTA5
Product Number: 12086
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes - All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall Studs
16" O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels
Interior
One Piece Aluminum Subfloor Vapor Barrier - 3/4" Plywood Subfloor
3) 12V LED Dome Lights w/ Switch - (1) 12V Power Roof Vent
7' Standard Interior Height
4) 5000# Recessed D-Rings
4' Beavertail
Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3" Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36" 405 Series Entrance Door - FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Selected Options:
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair

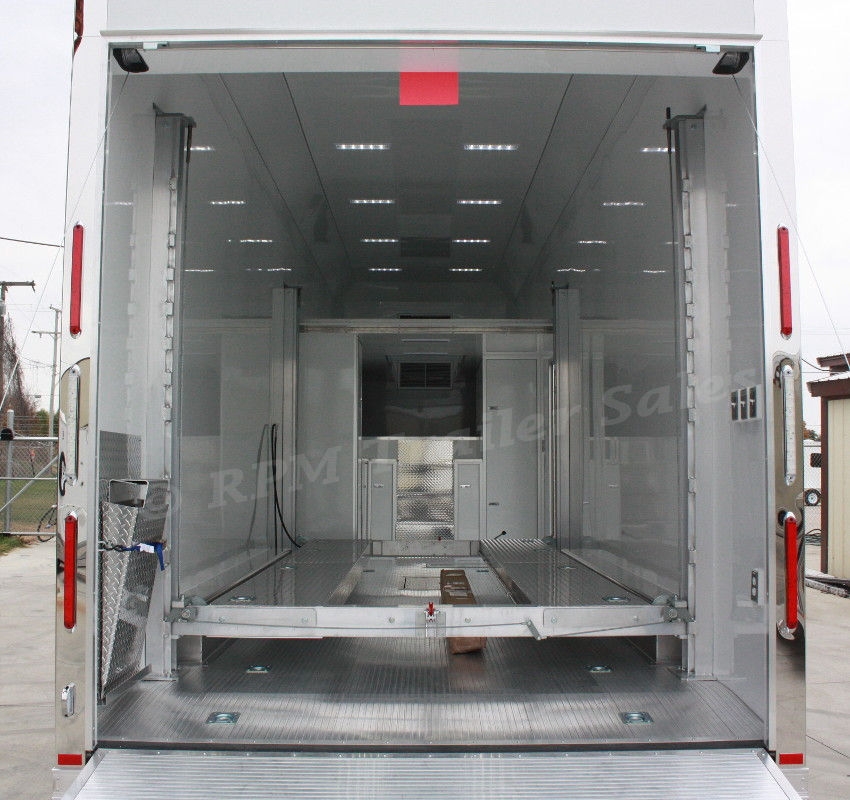

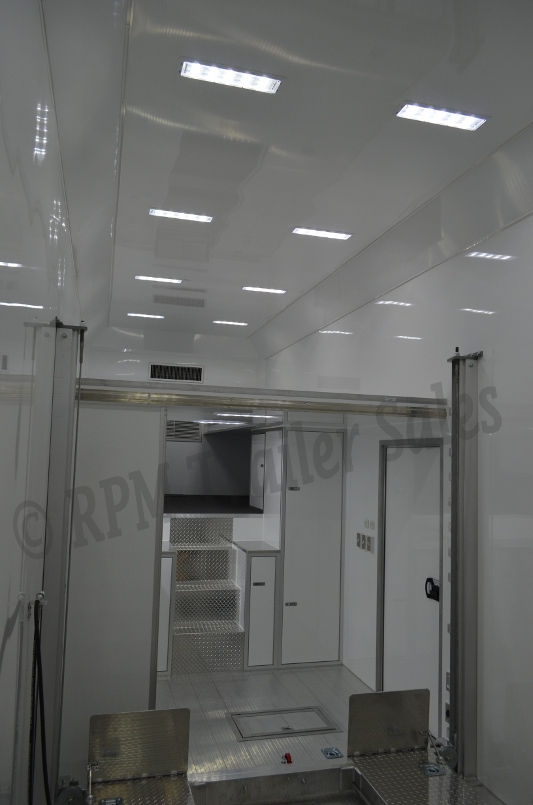

34' Stacker Lift Package
Upgraded to 10' Interior Height

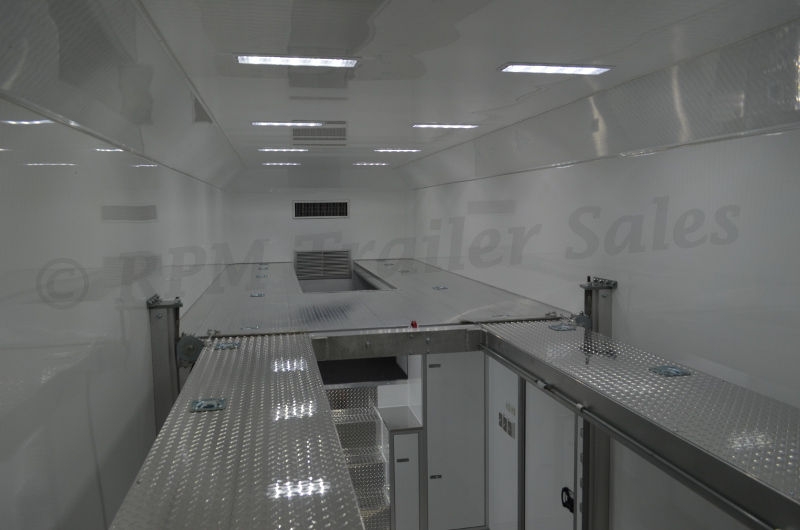

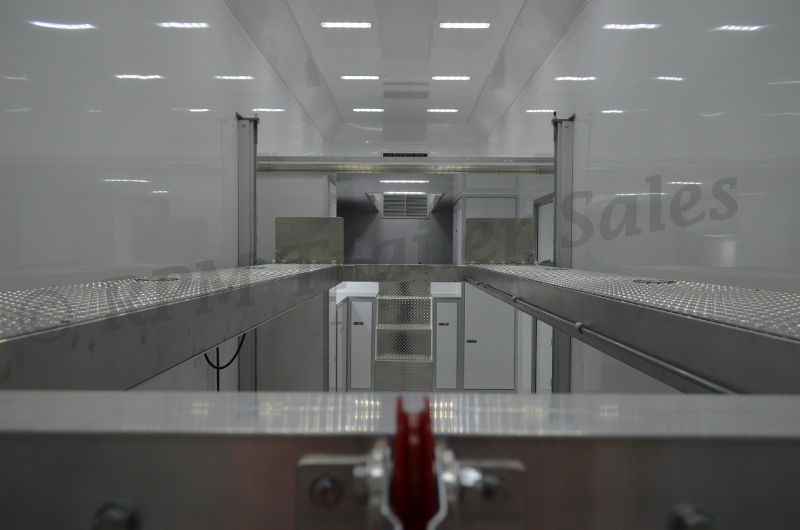

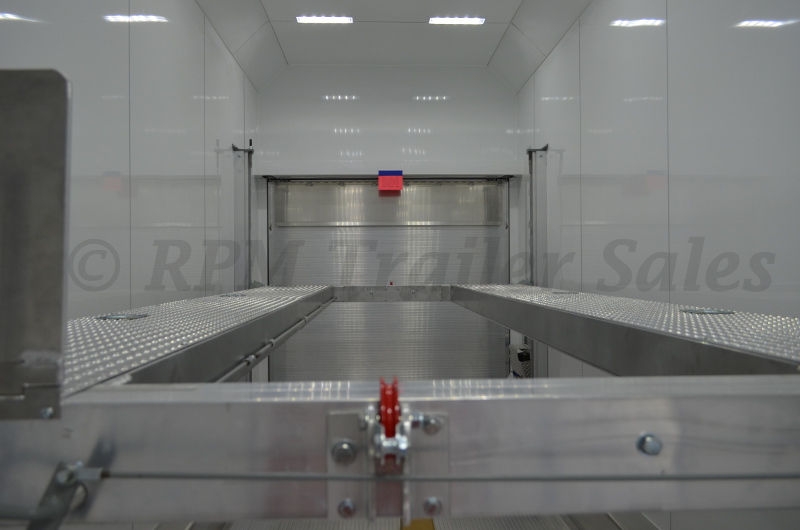

14' All Aluminum Split Rail Lift w/ ATP Rail Covering
Floor & Wall Bracing for Lift

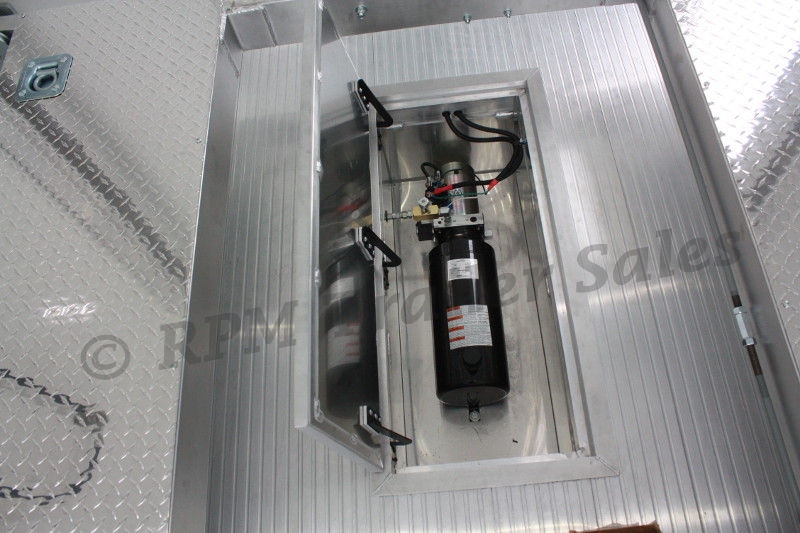

In Floor Battery & Pump Boxes
4) D-Rings Installed on Lift
Underside of Lift Finished w/ .030 Aluminum
Extruded Aluminum Trailer Floor
Gray Carpet on Bunk Floor
Extruded Aluminum Ramp
Polished Cast Corners w/ SS Verticals & Front Horizontal
.040 Exterior Aluminum Upgrade
4" Upper and Lower Rub Rail Trim
.030 Screwless Aluminum Interior Walls & Ceiling
2) 12V Deep Cycle Batteries w/ Vented Boxes
Rear Stabilizer Jacks
Add Single Post Hydraulic Front Jack
SS Rear Paddle Latches for Rear Ramp Door
More additional options added:
Upgrade to .050 Exterior Aluminum
Insulated Walls & Ceiling - R4 Rated – Stacker
Upgrade to 11'4" Interior
Decrease Beavertail Size

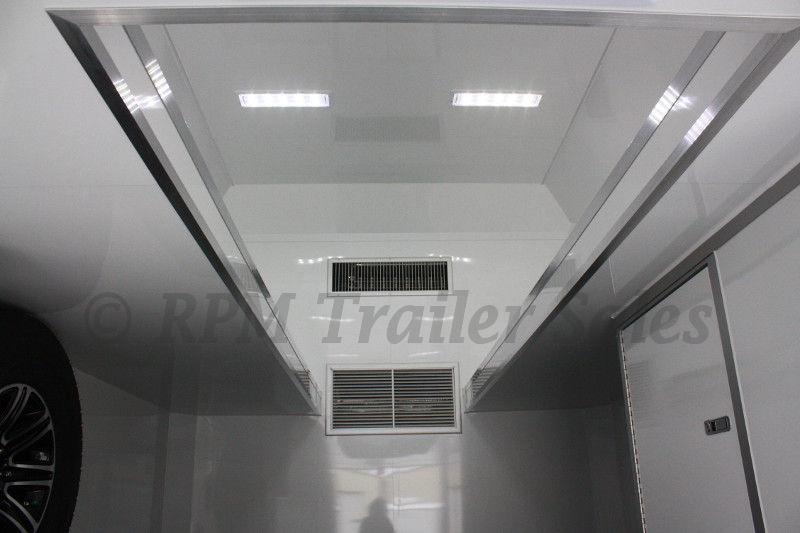

16’ Heavy Duty Attic w/ Matching Flooring
Upgrade to 2" x 2" Wall Posts
2) Rear Caster Wheels – Pair
Upgrade to Aluminum 16" Wheels
Spare Tire on Aluminum Wheel

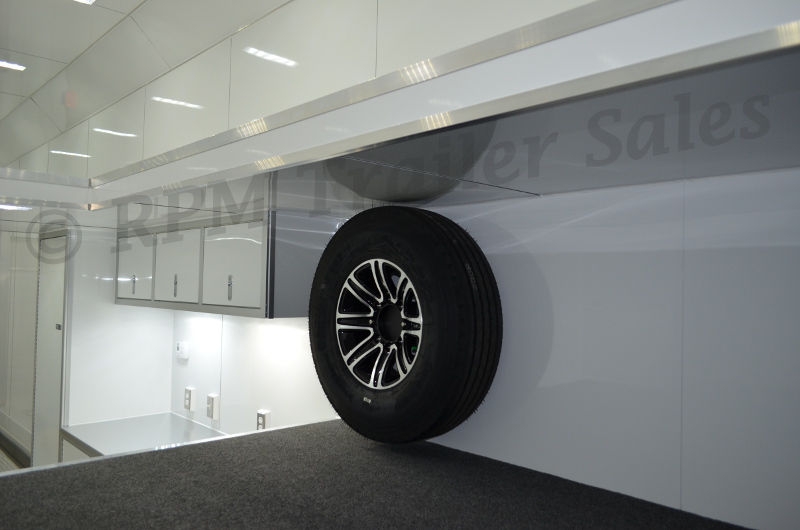

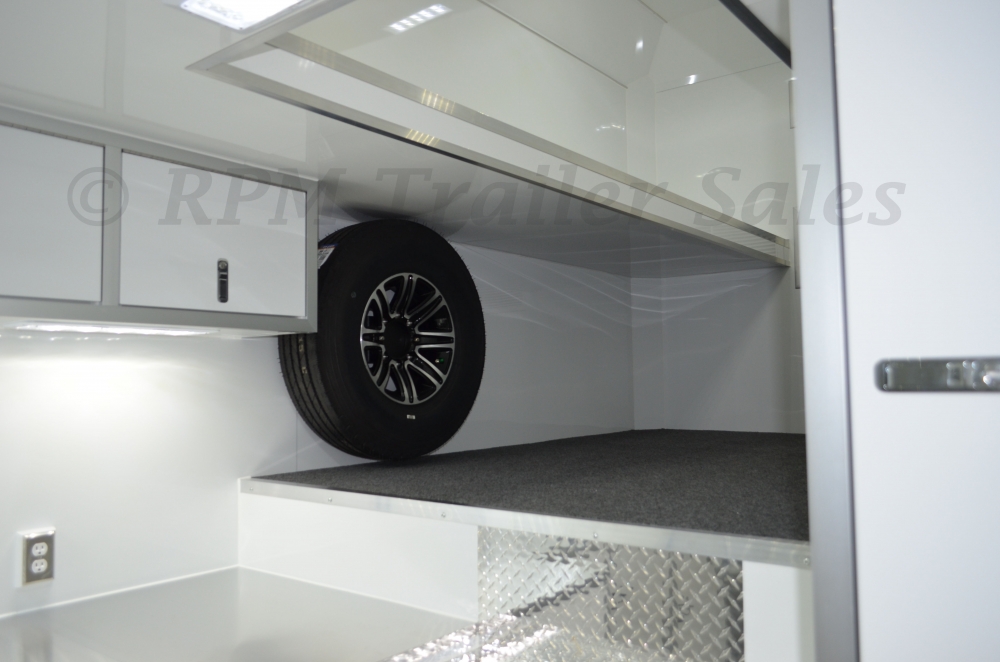

Spare Tire Wall Mount
Slideout Aluminum Step - Non-Slip
Upgrade to Heavy Duty Rear Ramp Door
Upgrade to One Piece Aluminum Transition Flap - 16"
2) 5" Bumpers for Rear Ramp Door
Cold Curtain for Rear Ramp Door – Removable
50 Amp Electrical Service Package:
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
Motorbase Plug
25' Shore Cord
12V Fuse Panel
60 Amp 12V Converter / Battery Charger
7) 120V 15A Recept - GFI Protected Where Required
Upgrade 50 Amp Panel to 240V Output Capable
3) 3 Way Light Switches (Pair)

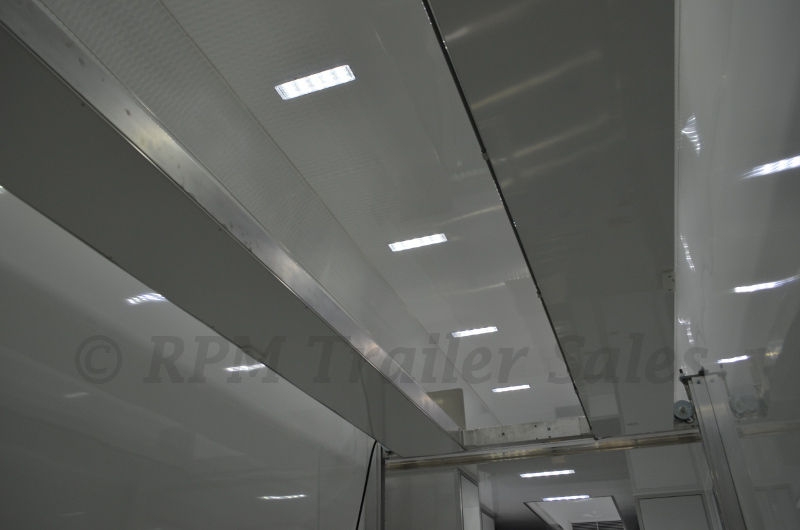

13) 12V 18" LED Interior Light
Upgrade 3) Standard LED Dome Lights to 12V 18" LED Light
10) LED Clearance Light
LED Slimline Brake Lights (Pair)
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 12V LED Docking Back Up Flood Lights (Pair)
3) Whelen 12V Exterior LED Scene Light - 900 Series

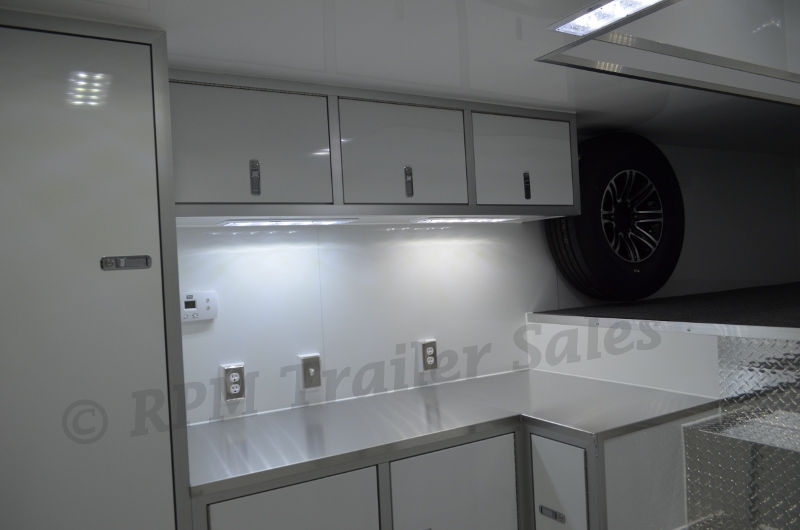

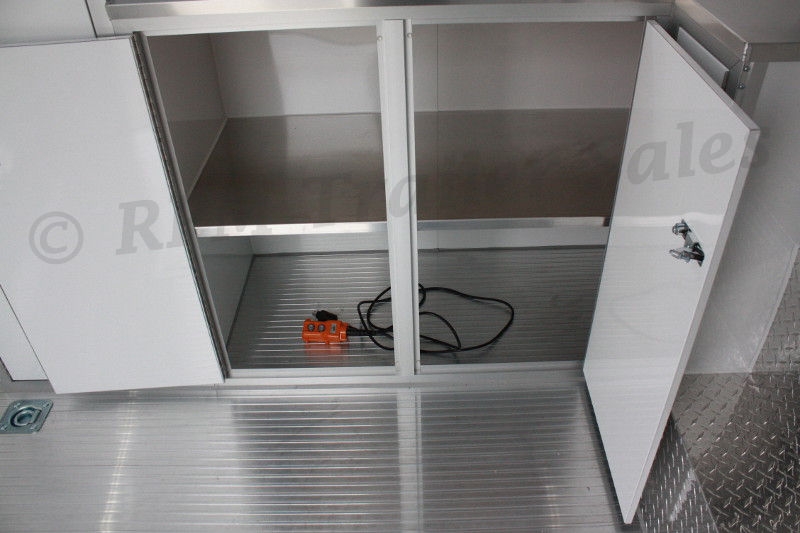

8' Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
3’ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Premium Standalone Dresser Closet w/ Clear Anodized Trim
Aluminum Dresser Closet to Lower Cabinet
8' Premium Upper Aluminum Cabinet w/ Clear Anodized Trim

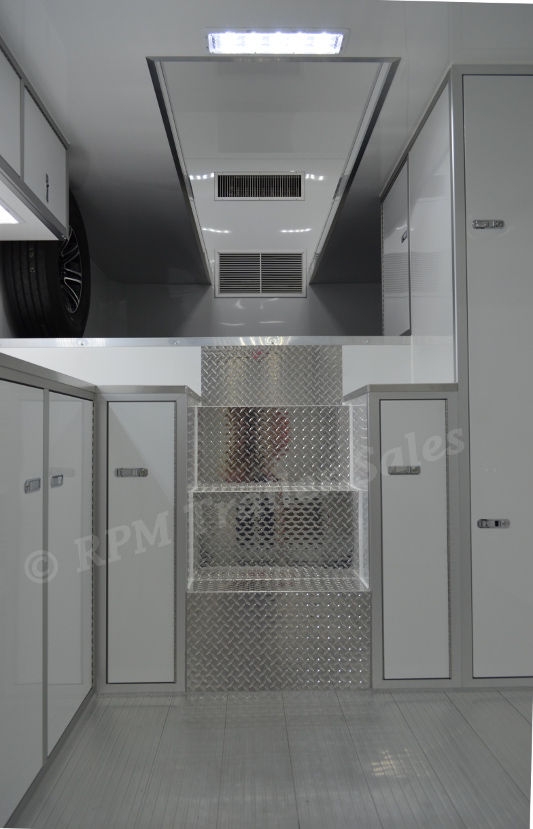

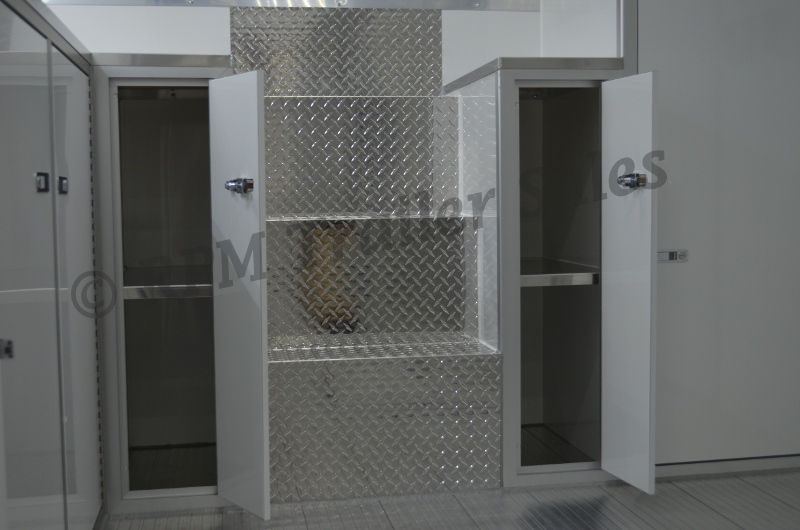

ATP Steps into Gooseneck Riser
22) 5,000 Lb. D-Rings – Recessed
Upgrade to Mirror Finished Stainless Steel Rear Vertical Posts

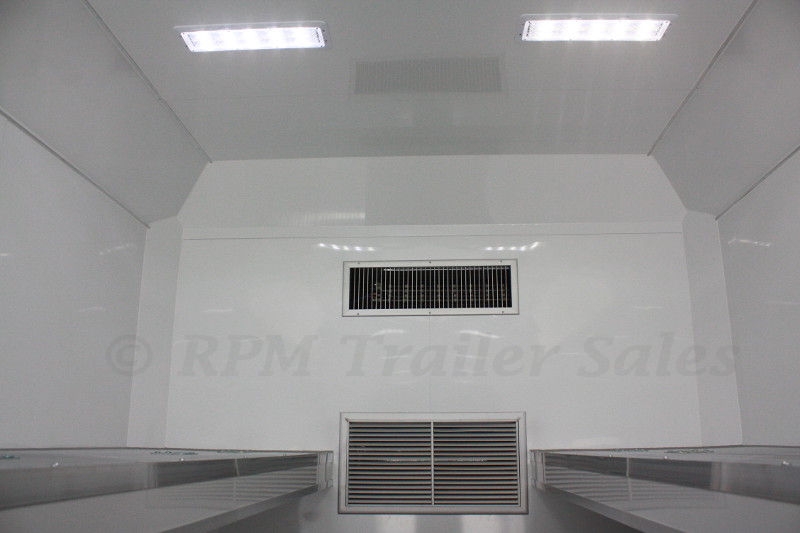

2.5 Ton Bard A/C w/ 5KW Heat
High Polish Stainless Steel Cover for Bard A/C

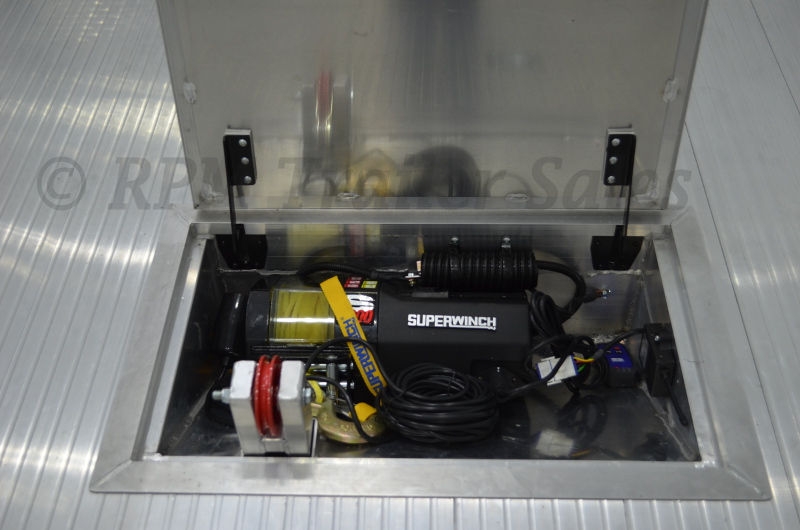

In Floor Winch Box w/ Pulley - Angled Mount
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
Upgrade to Dual Post Hydraulic Landing Gear from Single Post
Install (2) Pulleys on Lift For Winch Operation
